It has been pointed out to me, that I had overlooked officially documenting the MECB Bus pinout.
So, it’s time this oversight was fixed!
I suspect that, originally, I was focussed on documenting the MECB Standardised Board Mechanical Specifications, and I then directly proceeded to just including the Bus connector pin usage within my KiCAD schematic diagrams.
Obviously, it would be much easier to reference the MECB Bus pinout, via an easy to read document.
So let’s fix that.

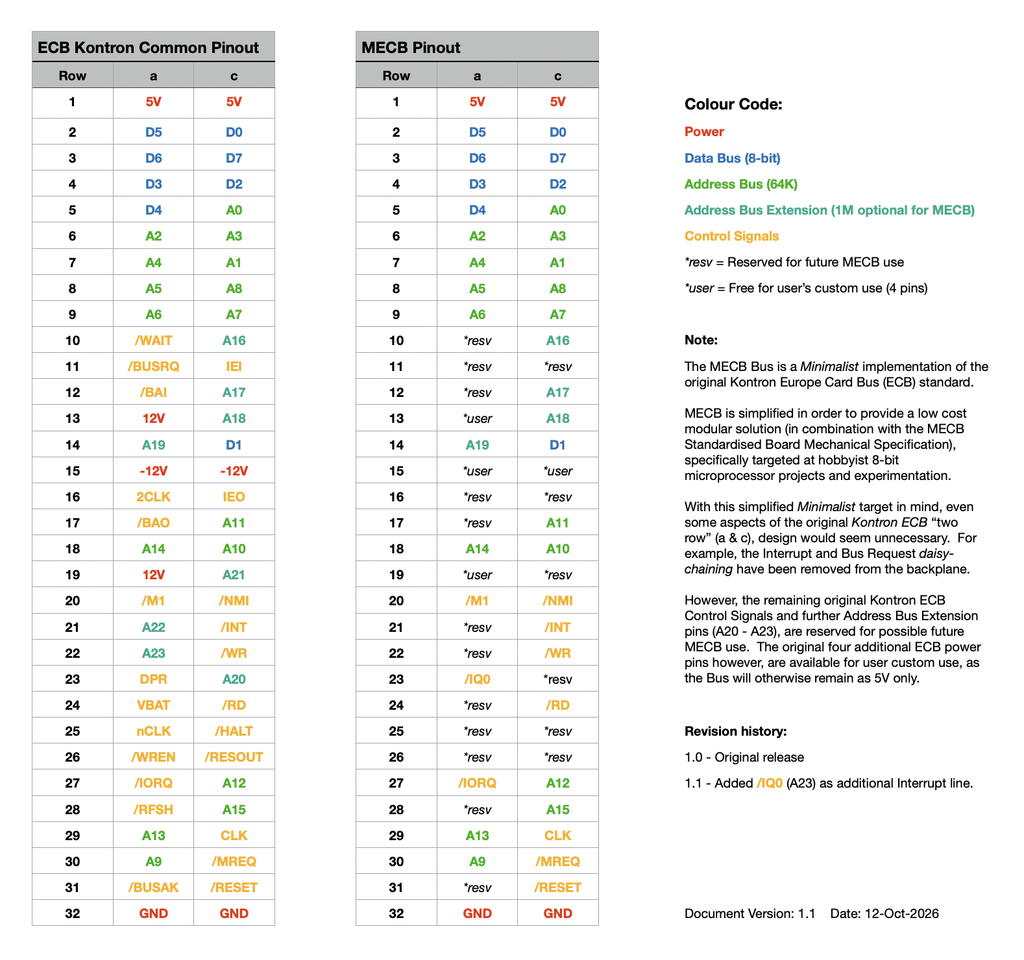

I’ve added the below to my original post covering the Minimalist Europe Card Bus (MECB) – Background & Introduction.
NB. To obtain the document in full size, you’ll find it in the GitHub repository (link provided below).
